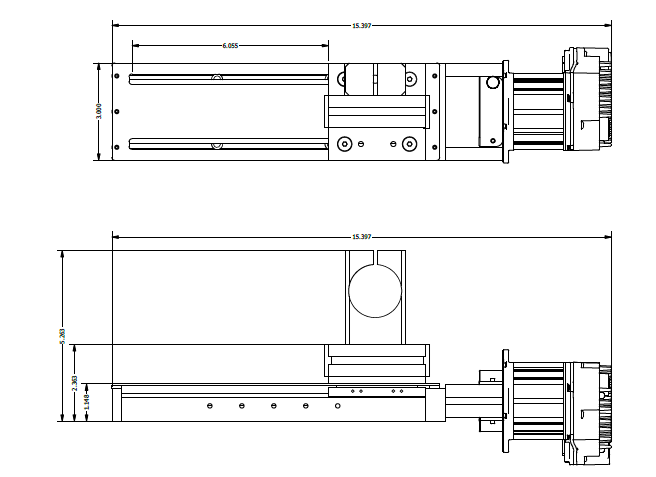

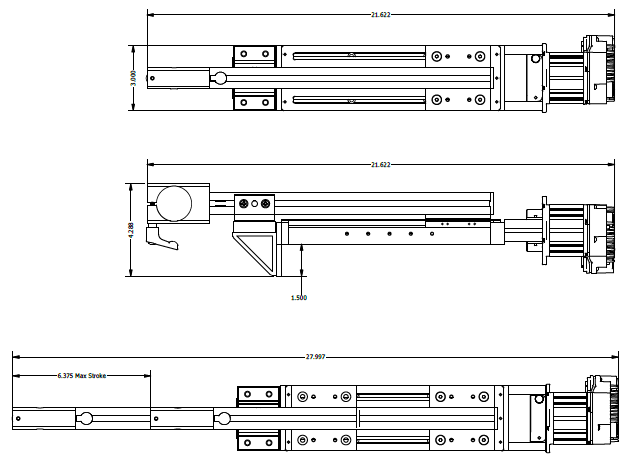

The JETMARK I PRO Traverser is a family of short-range motion devices for inkjet printing applications over stationary product. Print head mounts are offered as in line or extend-retract. The end adapter can accommodate CIJ, HP cartridge or other DOD printers. The unit is available in stroke lengths of 2, 4, or 6". The traverse speed is adjustable from 0-12"/sec. The JETMARK I PRO is actuated by any dry contact closure.
Unit of Measure

Specifications

Alternating Current (AC) Voltage

 N/A 115 V230 V

Frequency

 N/A 50 to 60 Hz

Power Rating

 N/A 120 W

Stroke Length

 N/A 0 to 2 in0 to 4 in0 to 6 in

Speed

 N/A 0 to 12 in/s

Input

N/A

  • Dry Contact
  • 0-30 VDC (Optional)

Output

N/A

  • Dry Contact (Optional)
  • 0-30 VDC Open Collector

Additional Information

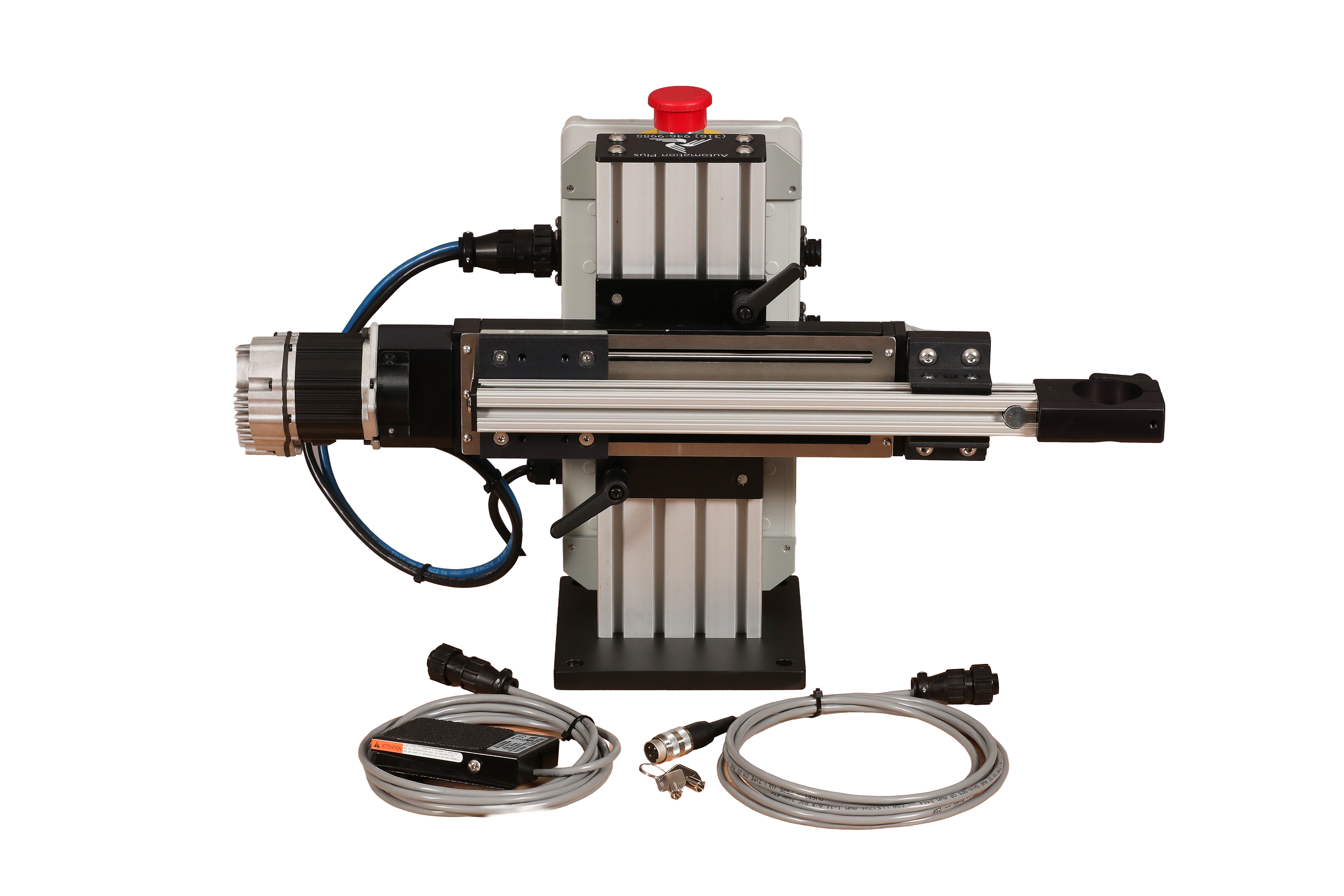

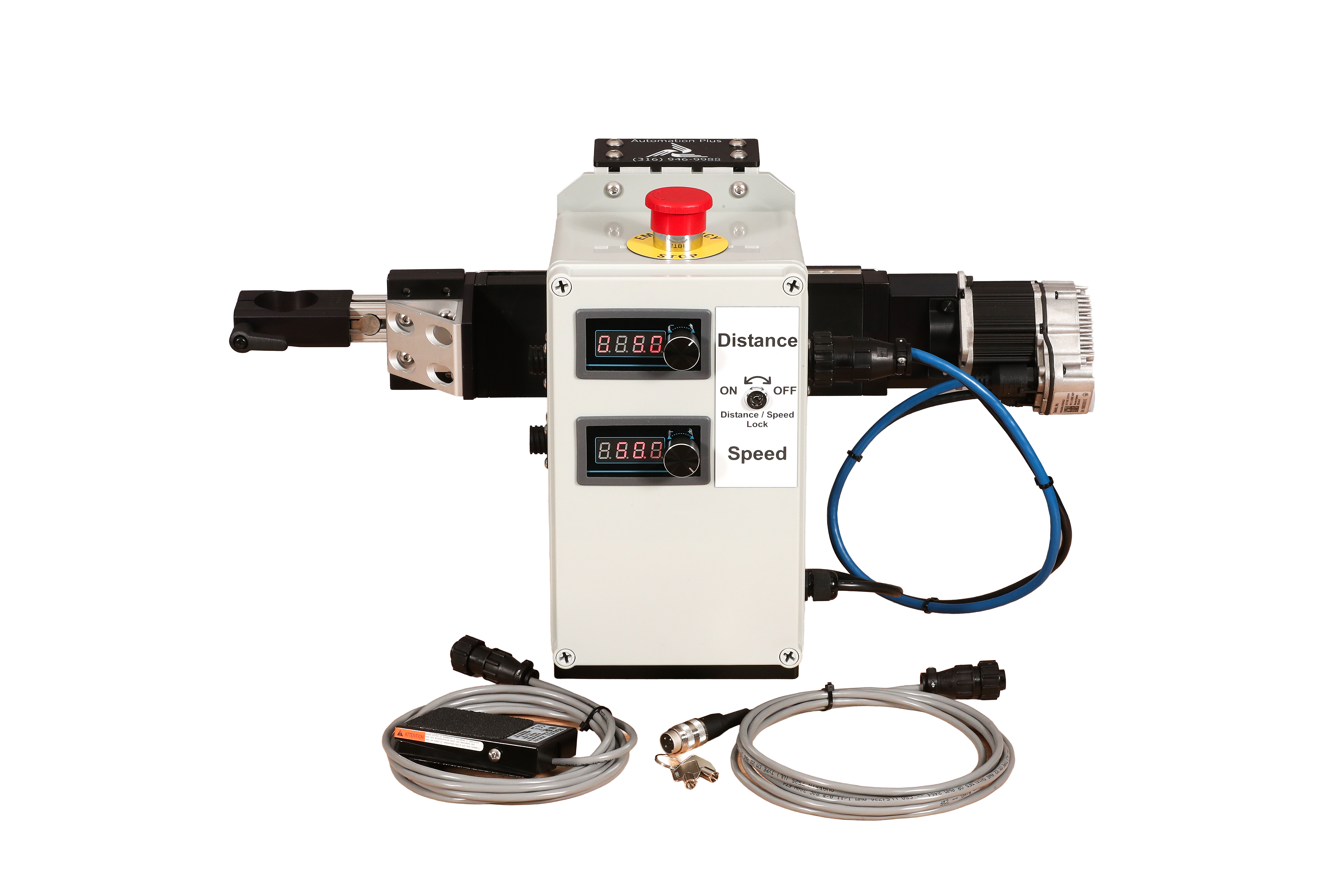

N/A When activated the controller will provide a 0-30VDC output trigger to the inkjet printer and start the in-out motion. The trigger will be held on until the end of the return stroke. The system comes complete with a 12" adjustable mounting stand, motion actuator, controller, 12' print trigger cable, and foot switch with a 6' cord.
