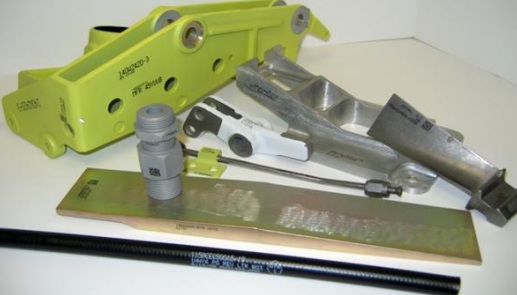

The HMP-1580 Advanced Part marking system was designed specifically for aerospace product identification. The system can mark parts as small as fasteners to as large as wing spars from the same platform. The working part of the system couples an industrial inkjet printer to our AS-1000H Handheld transport device. AS-1000H provides motion of the inkjet print head across the product to create the identification mark. The print head does not touch the product which allows the mark to conform to rough or contoured surfaces.
Unit of Measure

Specifications

Marking Stroke

 N/A 3.5 in

Print Cycle

 N/A 1.2 seconds

Print Size

 N/A 0.08 to 0.375 in

Alternating Current (AC) Voltage

 N/A 115 V230 V

Power Rating

 N/A 500 W

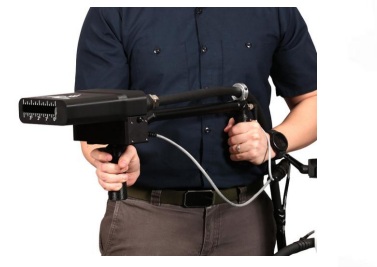

AS-1000H Features

N/A

  • Fixed mounting hardware allows footswitch activation
  • Provides 3M usable marking range from cart
  • Hood provides stable footprint for marking
  • Works in any orientation

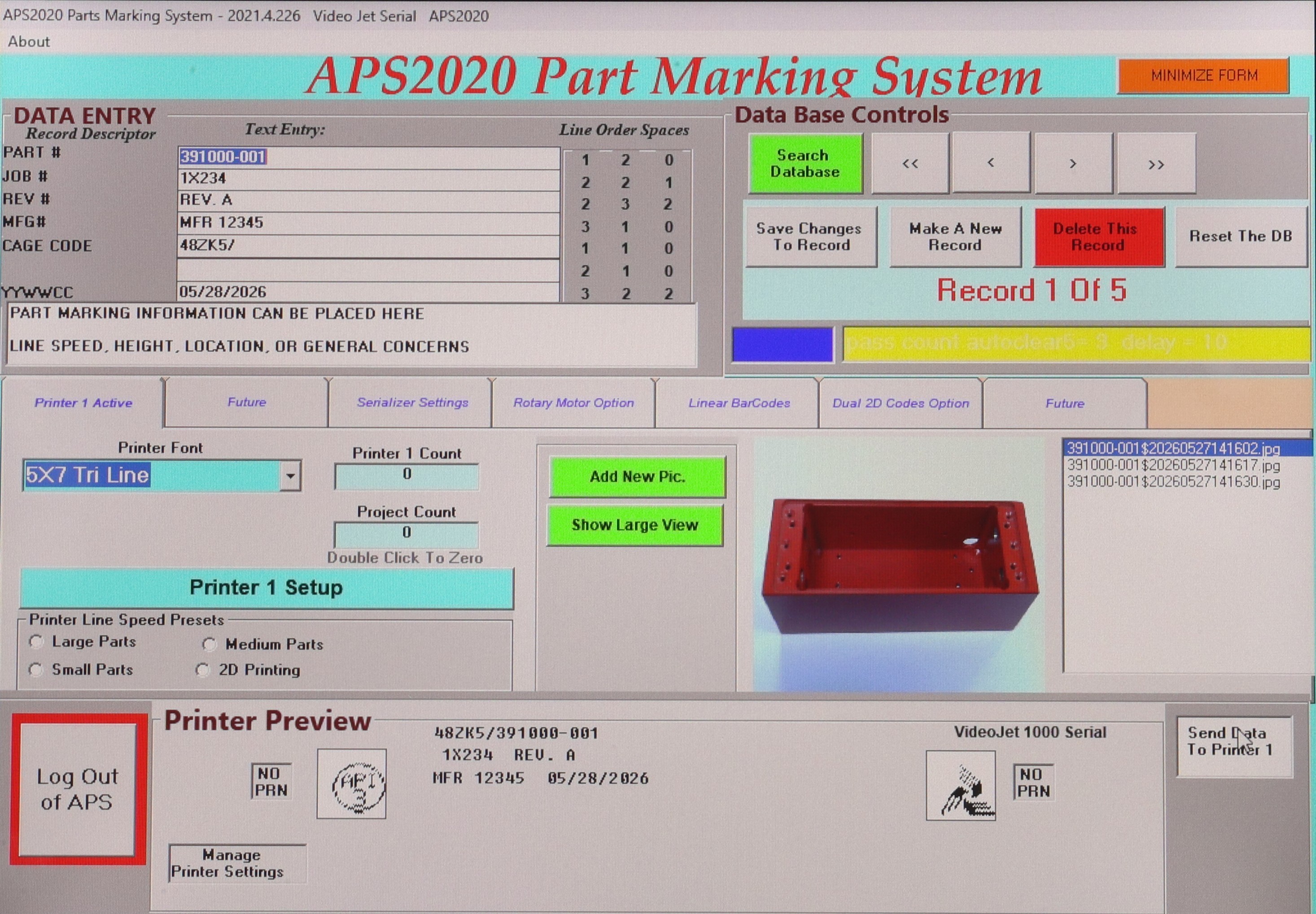

APS-2020 Features

APS-2020 Features

 N/A
  • Database storage of part mark fields and templates
  • Barcode input of part mark data
  • Part mark data recalled and ready for print in seconds
  • Multiple pictures taken with web cam then recalled with data to confirm part and mark location.
  • Print size adjustability from 0.08" to 0.375"/character
  • 1-4 line marking formats with up to four graphics
  • 5-8 line marking format with 2 trigger pulls
  • Graphics Generator for Logos and Bugs
  • Serializer with database storage of last number used
  • Printable 2D barcodes including verifiable UID matrix code
  • Network interface to MRP/ERP

Additional Information

Inkjet System

 N/A
  • Inkjet process is recognized by MIL STD 130
  • Inks approved for the majority of aerospace manufacturers
  • Inks dry to touch in seconds

Additional Information

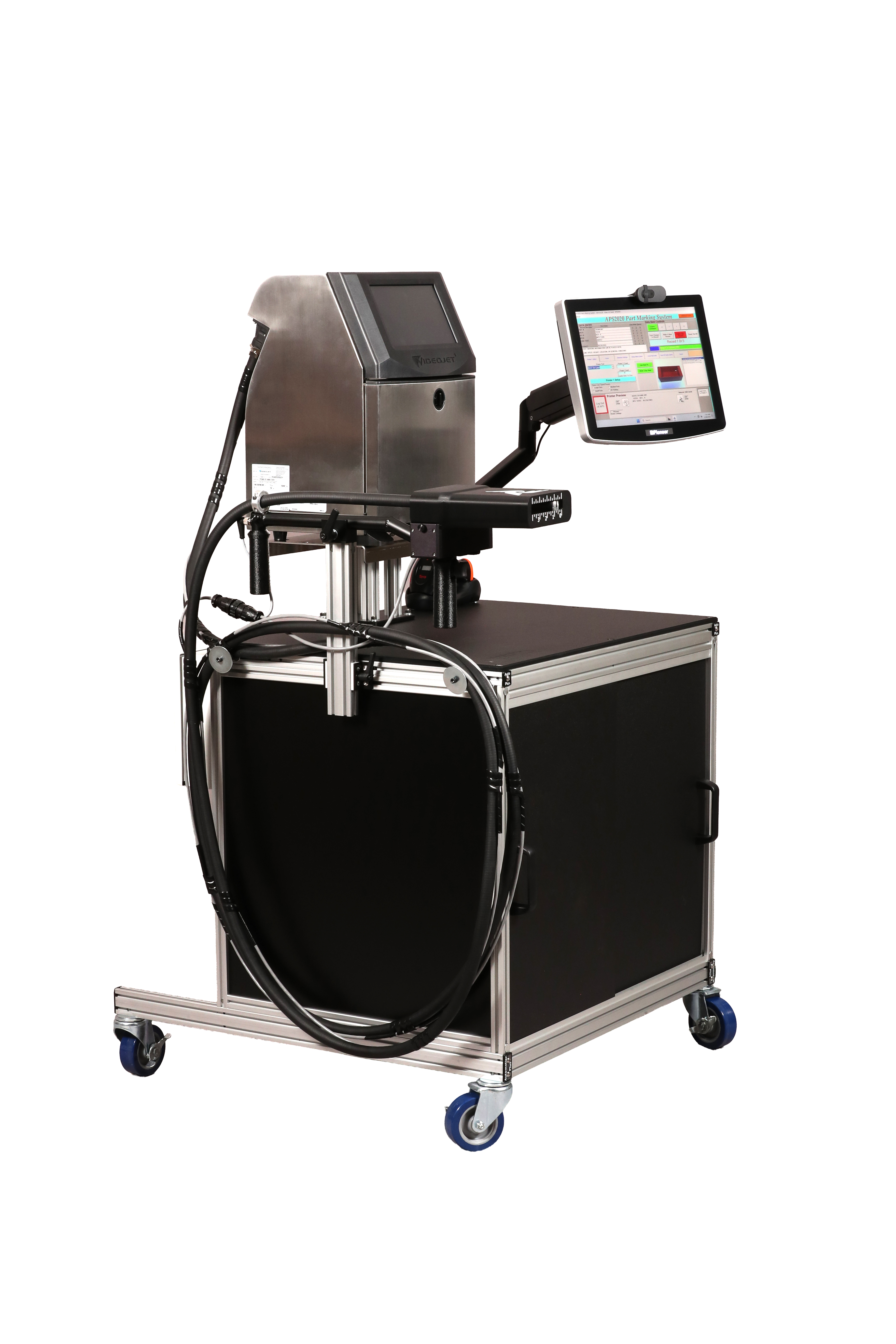

 N/A Our APS-2020 aerospace parts-marking software with a Windows based computer provides an application tailored to the Part Mark requirements of the Aerospace Industry. Database storage of the mark data and format allows fast and accurate part marking. The inkjet printer, the AS-1000H, a touch screen POS computer with the APS 2020 software, and a handheld barcode scanner are combined with the required cables, air and power conditioning equipment on our MC-1000 inkjet cart to create the HMP-1580.
