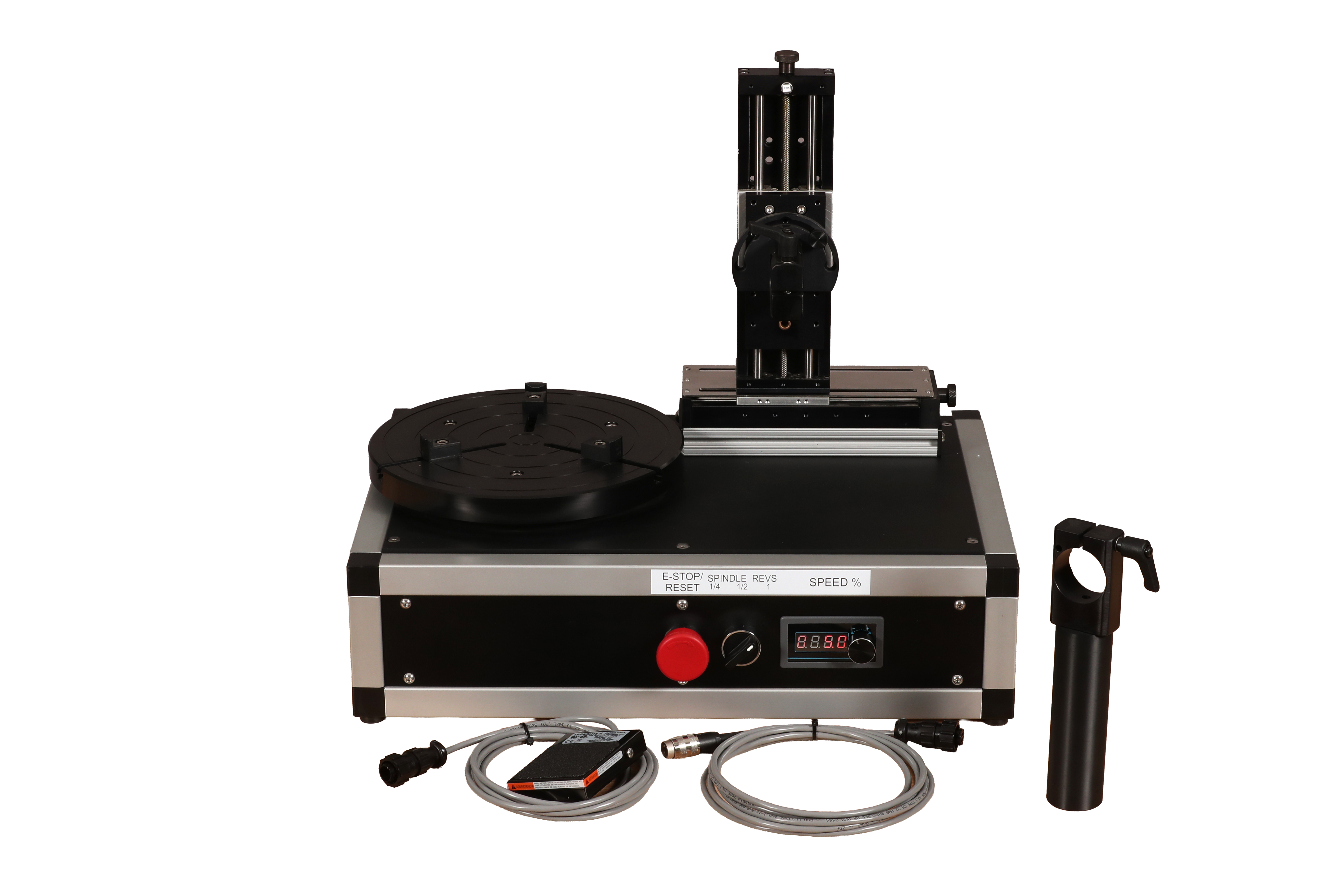

The ECM-501HD system provides a rotating spindle to mark around the circumference of a product. Cylindrical products such as connector bodies or back shells are set on the spindle and rotated while the inkjet printer is triggered. Spindle rotation is activated by a foot switch or optional photo sensor. The print head is positioned using fine pitch screw driven slides and can be set to mark anywhere in a cylindrical area 10+ inches in diameter and 8 inches in height. The print head holder rotates from 0-90 degrees around the Z-axis to allow the printing on hard to reach surfaces.
Unit of Measure

Specifications

Length

 N/A 14 in

Width

 N/A 20 in

Height

 N/A 16 in

Alternating Current (AC) Voltage

 N/A 100 V220 V

Current Rating

 N/A 2 A

Geared Spindle Speed

 N/A 0 to 300 rpm

Additional Information

N/A Rotation speed for different radius parts is controlled by digital pot on the front panel. A selector switch allows one or two rotations to ensure printing does not occur during spindle acceleration or deceleration.

Features

N/A

  • 10" Rotary tee plate with adjustable stops
  • Top Print adapter
  • Foot switch included
  • Printer trigger cable included
