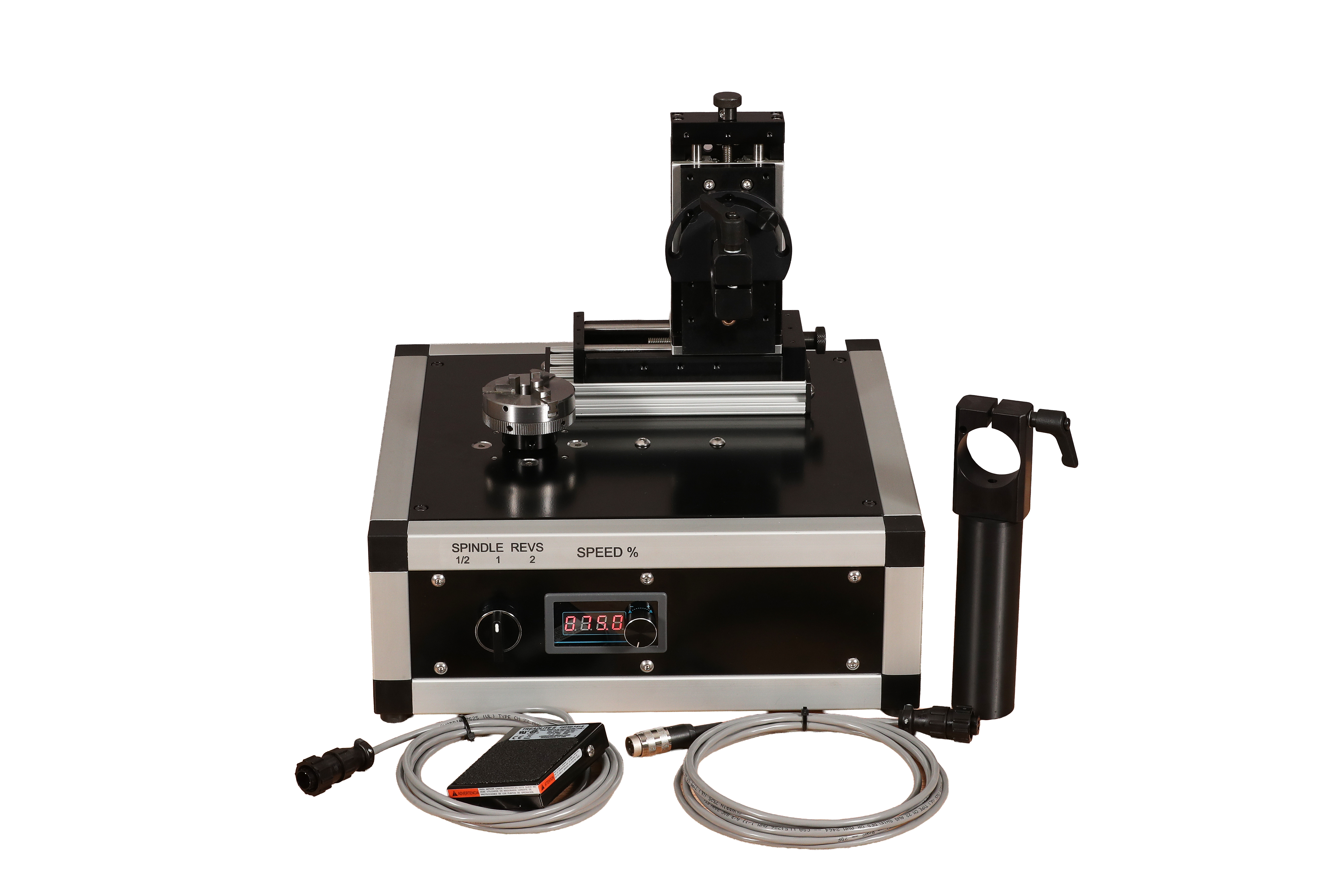

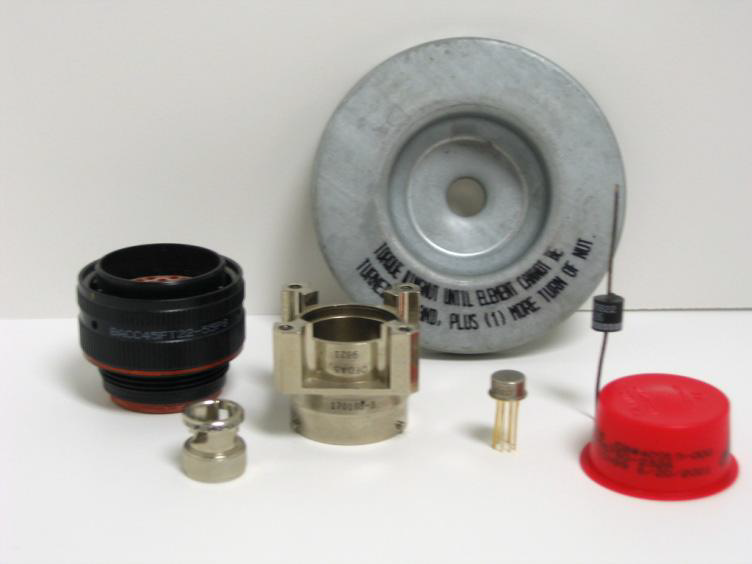

The ECM-501 system provides a rotating spindle to mark around the circumference of a product. Cylindrical products such as connector bodies or back shells are set on the spindle and rotated while the inkjet printer is triggered. Spindle rotation is activated by a foot switch or optional photo sensor. The print head is positioned using fine pitch screw driven slides and can be set to mark anywhere in a cylindrical area 8 inches in diameter and 6 inches in height. The print head holder rotates from 0-90 degrees around the Z-axis to allow the printing on hard to reach surfaces.
Unit of Measure
Specifications
Length |
N/A 14 in |
Width |
N/A 14 in |
Height |
N/A 14 in |
Alternating Current (AC) Voltage |
N/A 100 V220 V |
Current Rating |
N/A 2 A |
Number of Jaw |
N/A 3 |
Jaw Chuck Standard Size |
N/A 2.5 in |
Geared Spindle Speed |
N/A 0 to 300 rpm |
Additional Information
|
N/A Rotation speed for different radius parts is controlled by a knob on the front panel. A selector switch allows one or two rotations to ensure printing does not occur during spindle acceleration or deceleration. A third position allows for 1/2 turn with auto return for shafted parts. |
